ใบตัดคอนกรีต

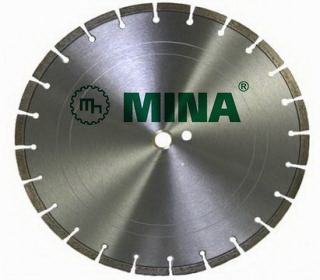

Diamond Saw Blade for Concrete






Diamond saw blade for reinforced concrete and asphalt
Made of high-grade diamond, our blade is sharp and durable,
characterized by its good cutting result, high efficiency,
stable performance and good abrasion.
We also offer various kinds silent blades which give you
a good working environment.
   Diameter Segment Dimension Core Thickness  Segment Number  Arbor
      (mm)  L × W × H      (mm)

250 40×2.5/2.8×8  1.8/2.0  17 25.4
300 40×3.0×10  2.2 20 25.4
350 40×3.2×10/12  2.4 24 25.4
400 40×3.4/3.6×10/12  2.6/2.8  28 25.4
450 40×4.2×10/12  3.2 32 25.4
500 40×4.2×10/12/15  3.2 36 25.4
600 40×4.8×10/12  3.6 42 25.4
700 40×5.2x10/12  3.8 50 25.4
800 40×5.6x10/12  4.5 46 25.4
Note: Other specifications are available upon customers request.
Inner hole can be processed according to the requirement of clients.
